Max. Speed
Max. Range
Max. Incline
Optimized Performance for Smooth Operations

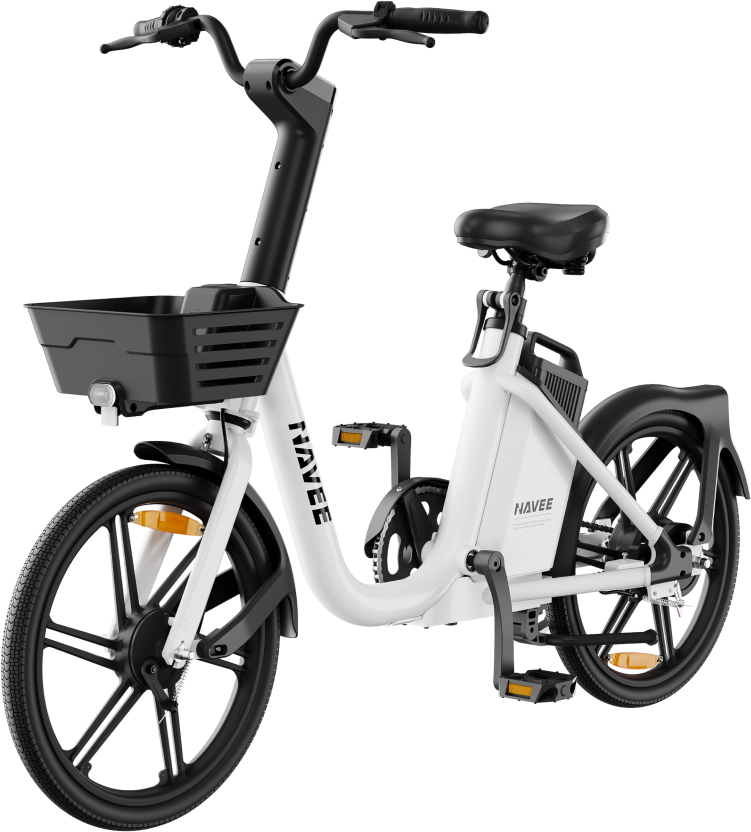

Weighing only 30kg, the M1 is one of the lightest models in its category. Its ultra-lightweight design not only makes riding smoother but also simplifies transportation and storage for everyday operations.

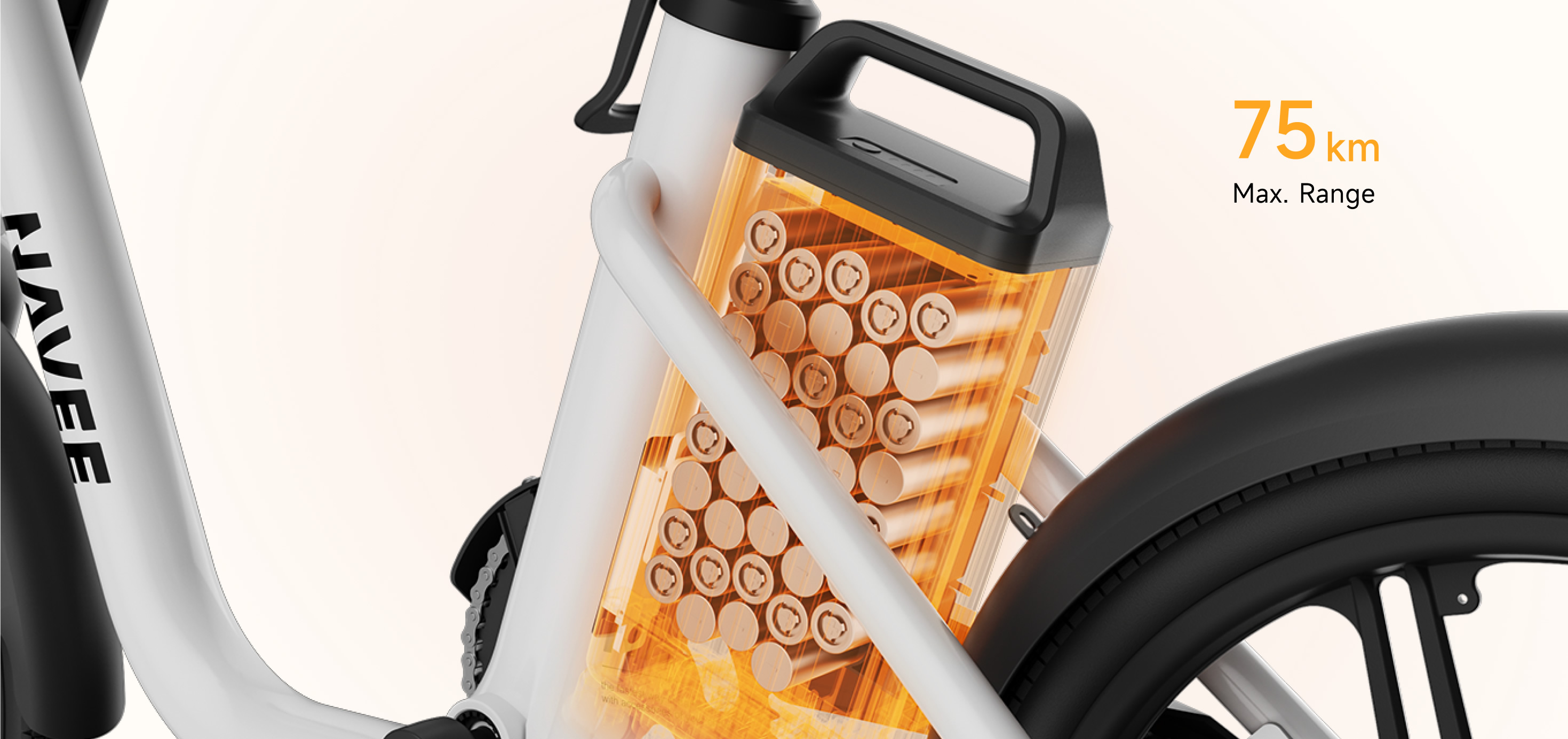

With an impressive 75km range and BMS 2.0 (Battery Management System), the M1 significantly reduces battery replacement frequency, optimizing operational costs and providing commuters with a reliable and efficient transportation solution.
offering 1s real-time data updates.
high data transmission speed & maintenance efficiency.
Sound warning system for road safety.
Auto-detects faults, reducing maintenance time and costs.
Saving time and logistics costs by avoiding physical recalls.
Durable Design with Simple Maintenance

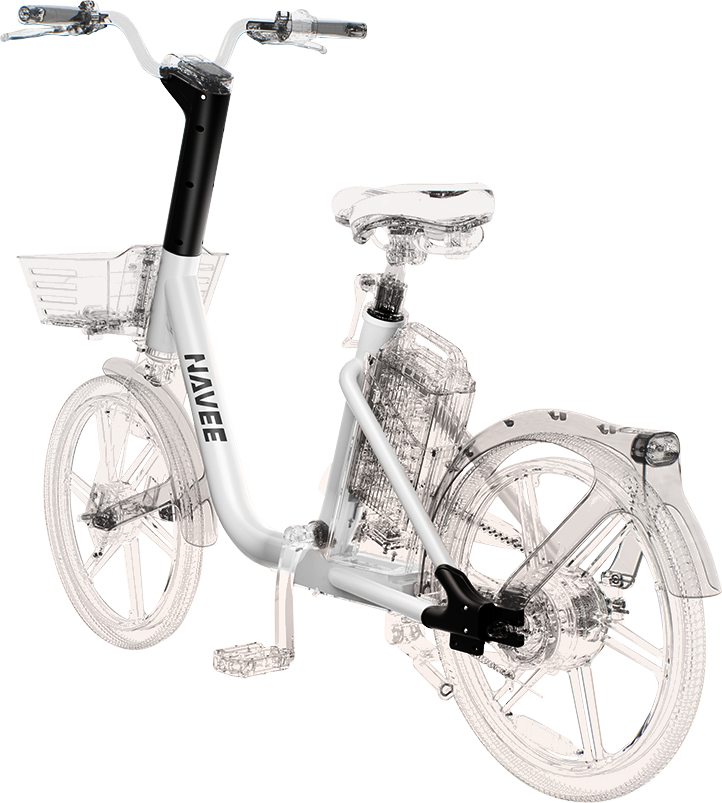

The M1 frame is crafted from reinforced aluminum alloy frame, offering exceptional durability and rust resistance. Weighing just 30kg, it strikes the perfect balance between strength and lightweight design.

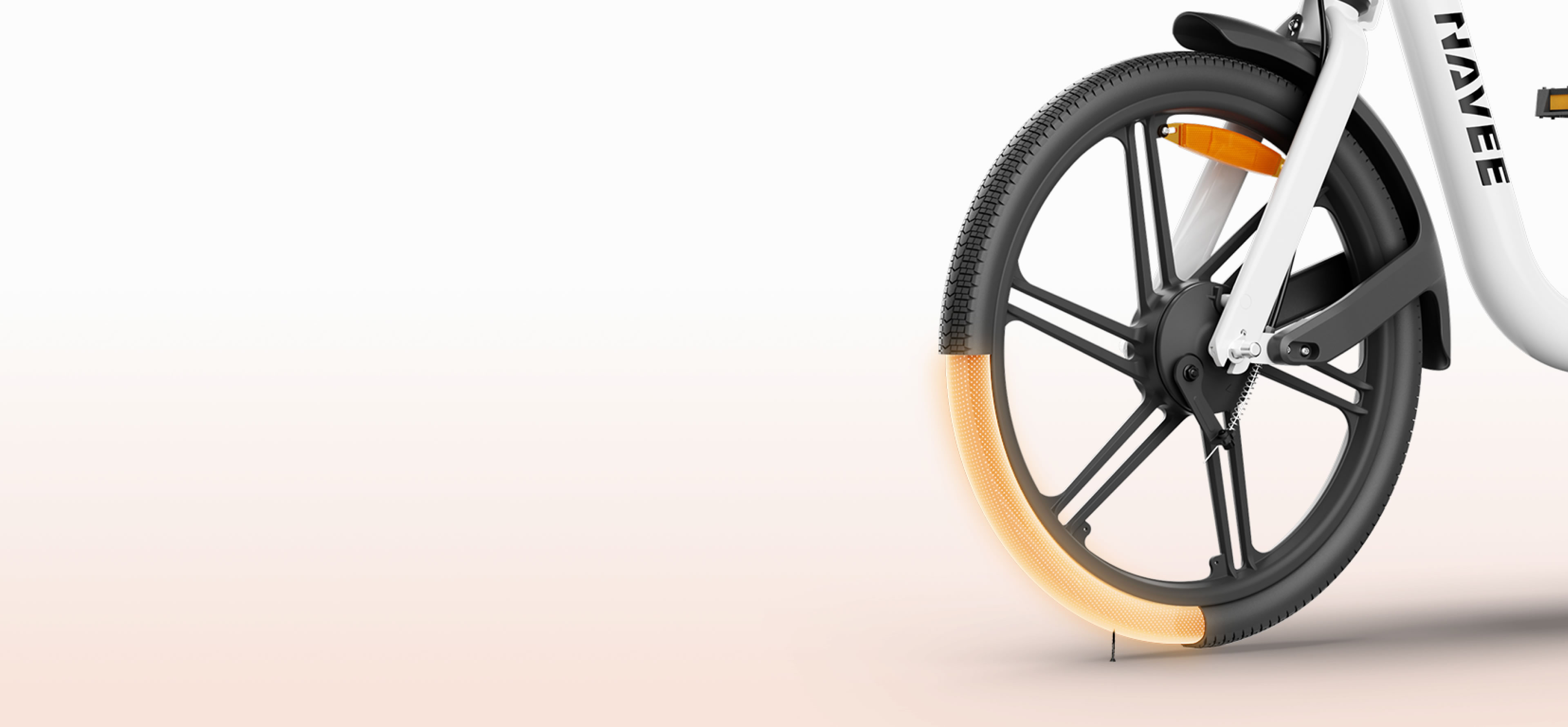

Durable, puncture-resistant solid tires[4] are built for the challenges of busy urban streets, delivering stability on uneven surfaces. With innovative, corrosion-resistant materials that withstand extreme temperatures, the M1 guarantees a longer service life in tough environments.

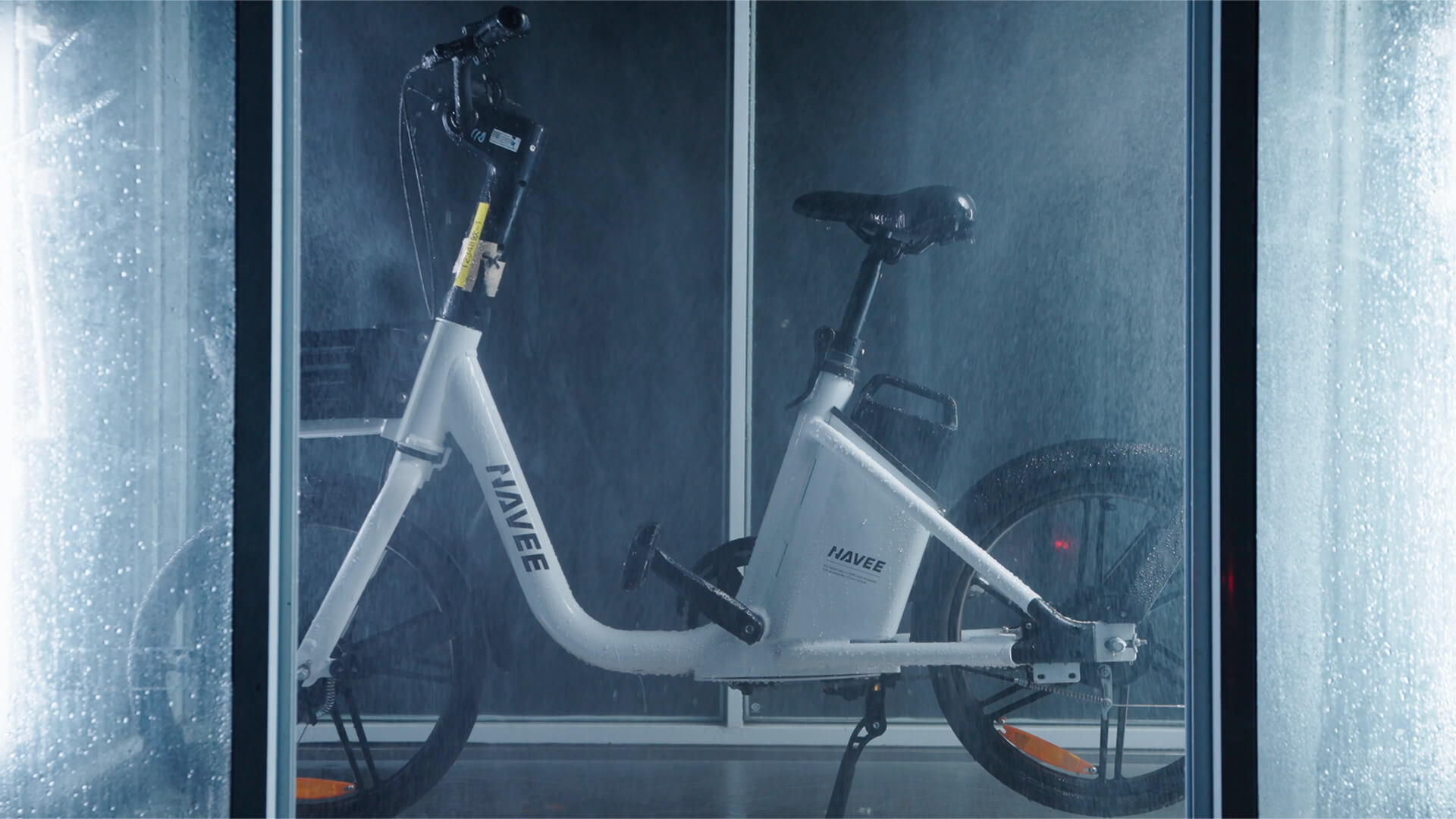

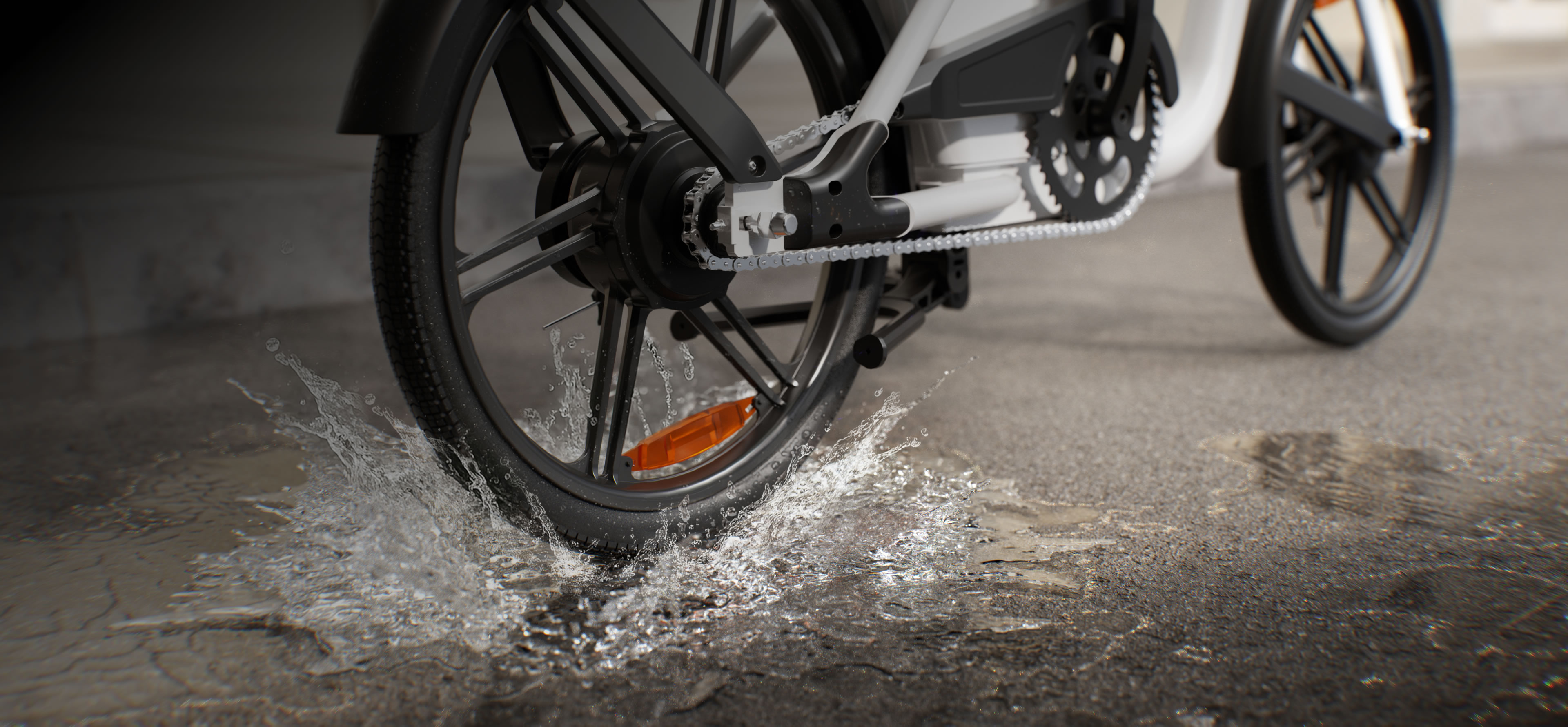

The M1 is designed with IPX5 water resistance[5]. Its durable waterproofing extends the vehicle’s lifespan and reduces weather-related maintenance risks.
Entire vehicle
Key components

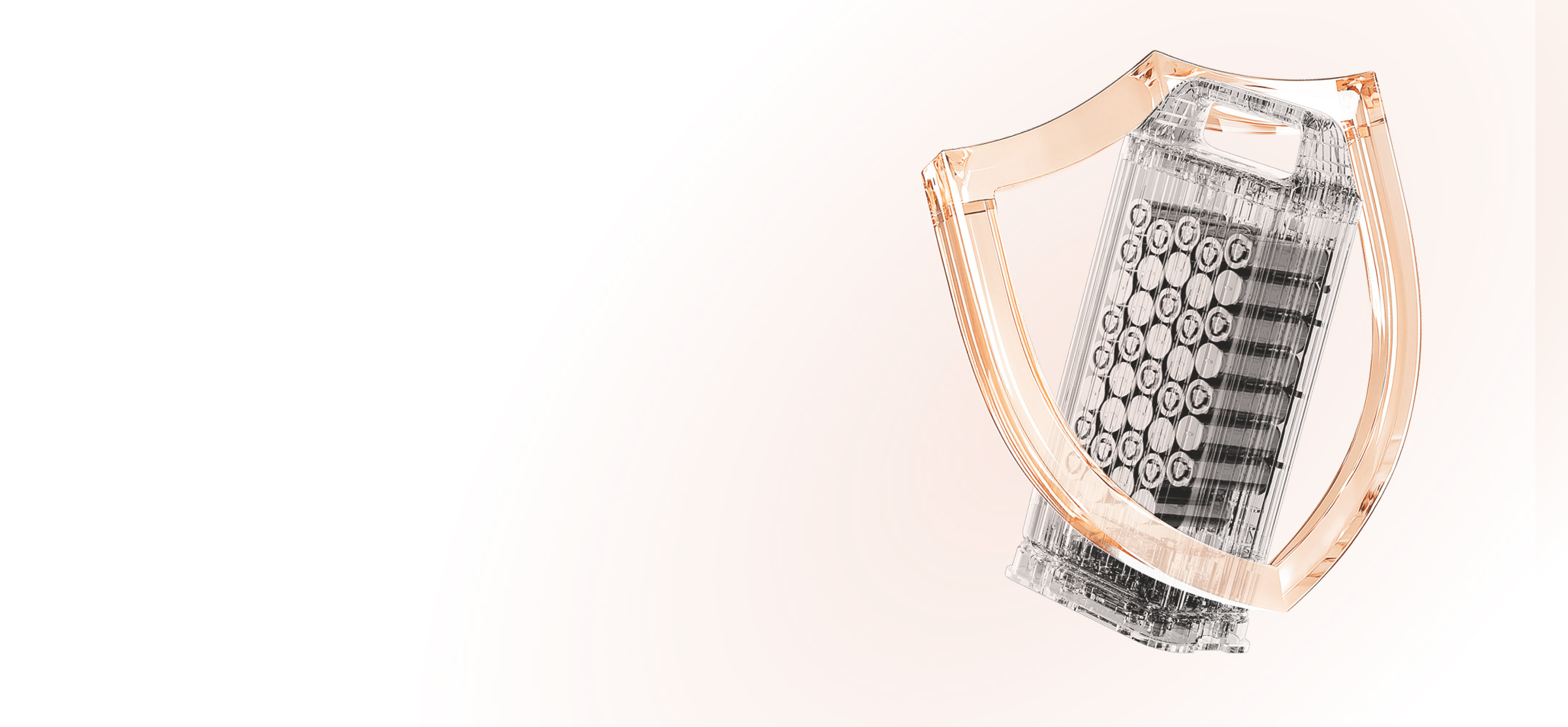

The meticulously engineered battery system features advanced IPX7 waterproof technology, ensuring safe operation in wet or harsh weather conditions. Anti-theft protection with security locks safeguards the battery against theft, reducing asset loss.
Waterproof
Protection

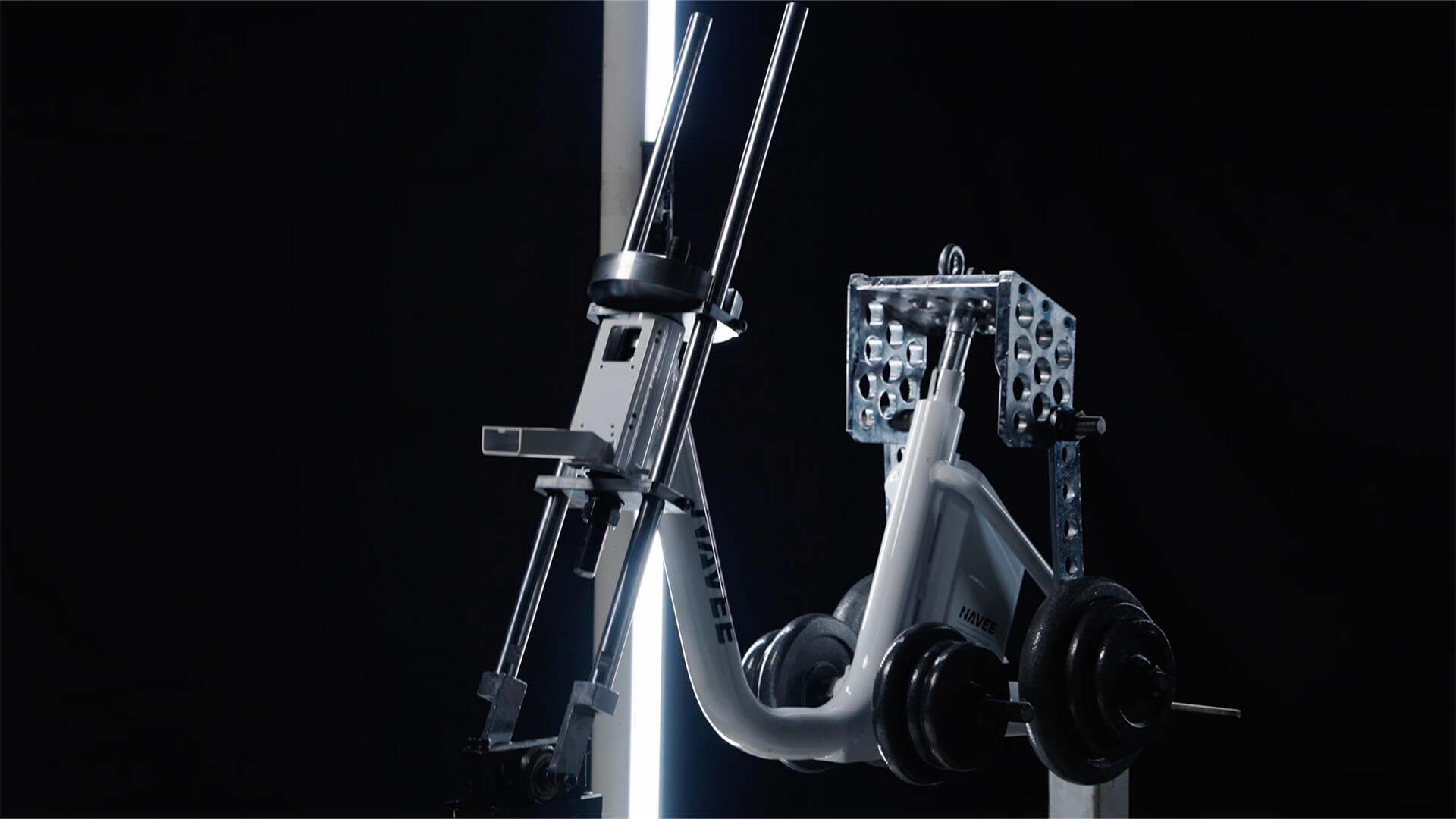

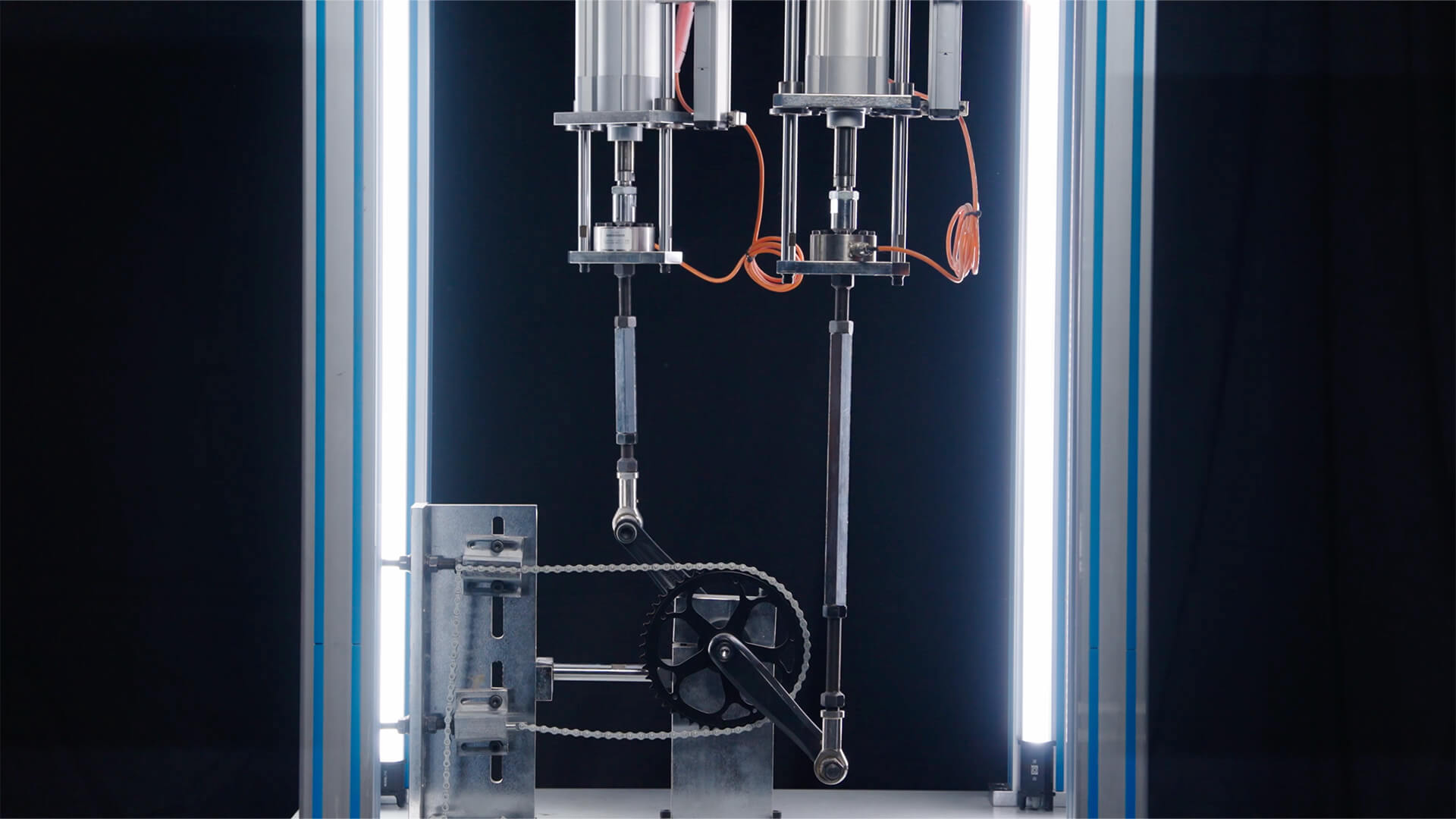

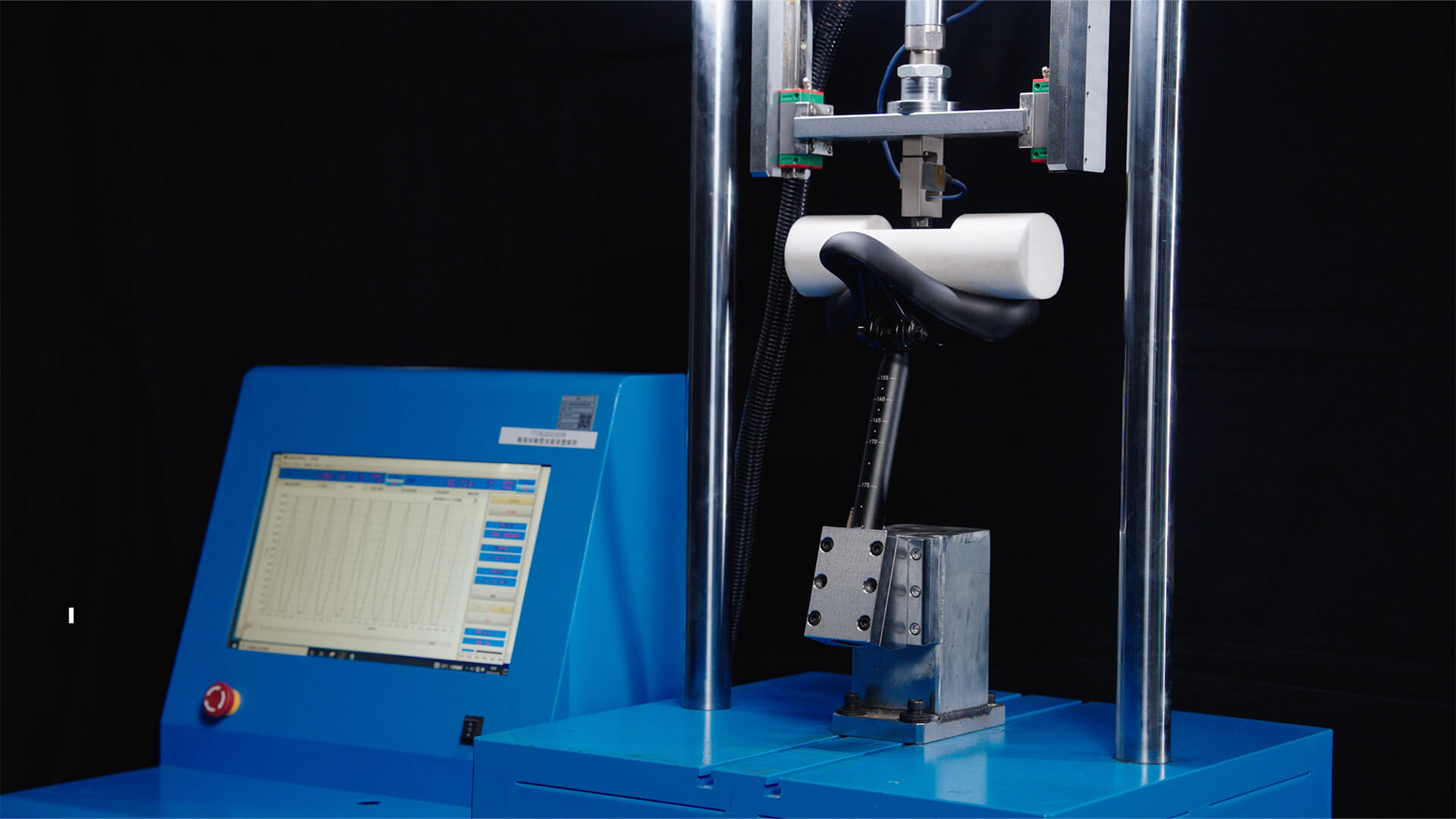

Every M1 undergoes stringent reliability tests and is built for high-intensity usage, ensuring exceptional durability, an extended lifecycle, and reduced operational costs for operators
Intuitive and Simple to Use

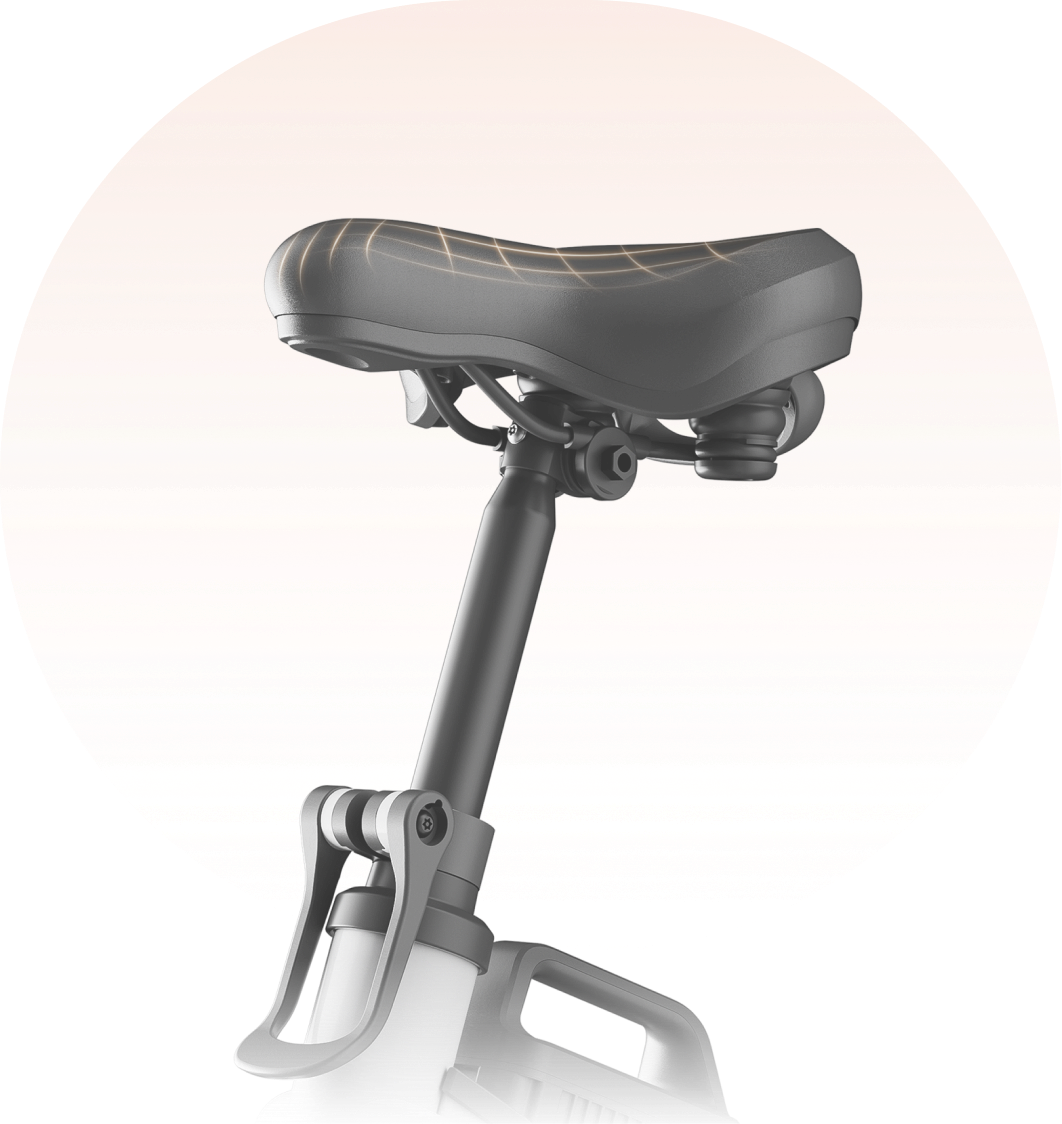

An adjustable PU seat with ergonomic contours ensures optimal comfort. The seat height accommodates riders from 155cm to 200cm, catering to a wide range of users and enabling long-distance rides with ease.

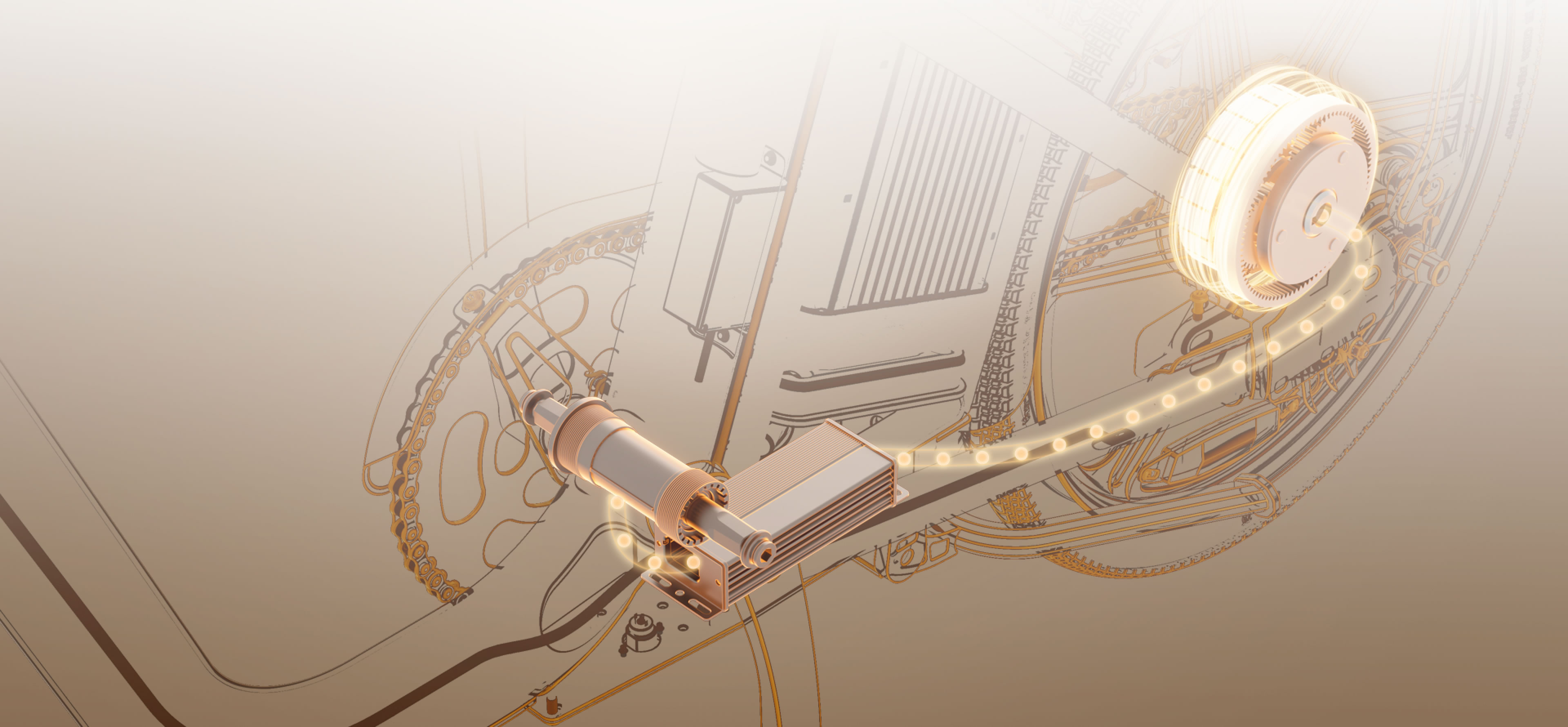

The M1’s intelligent algorithm detects inclines in real-time, automatically boosting torque for smooth and effortless hill climbing.
Smart Algorithm
Max. Incline

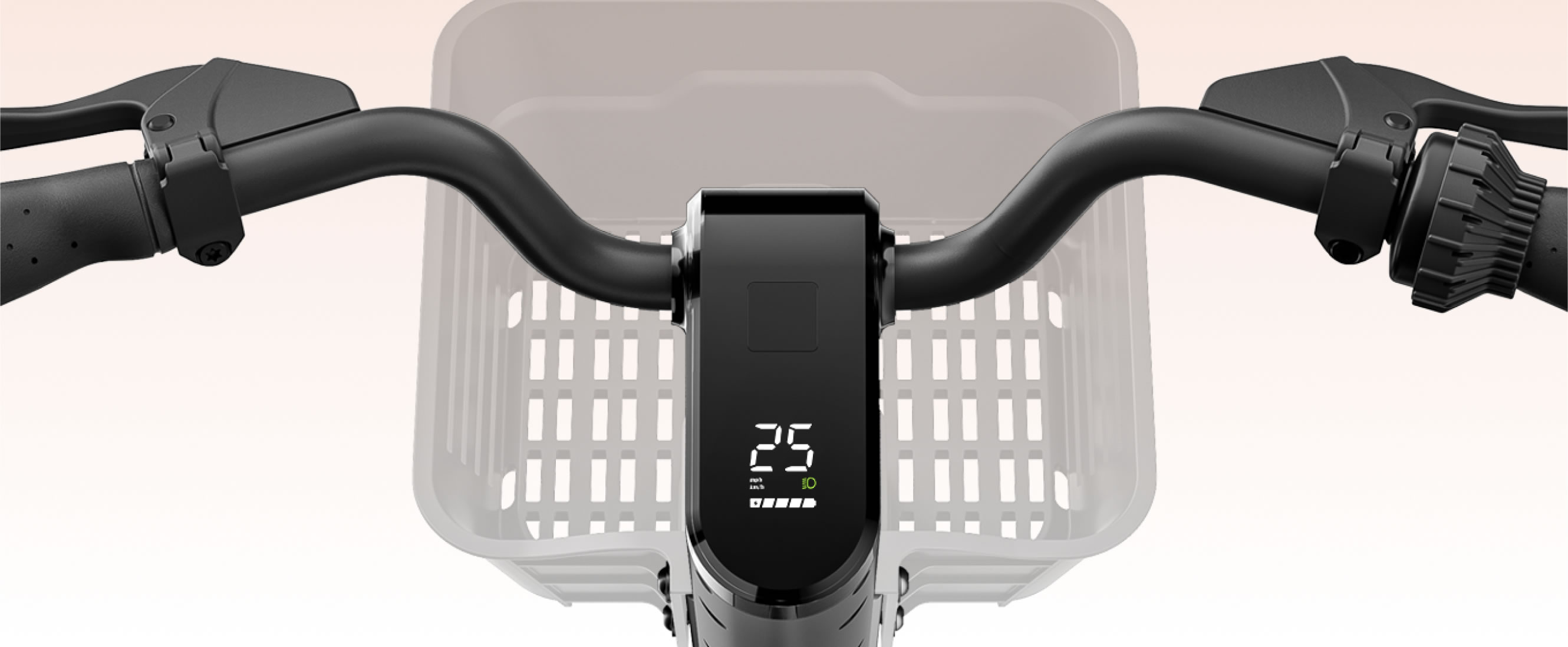

The integrated 3000-nit HD display ensures clear visibility of key metrics like battery level and speed, even in direct sunlight, enhancing both safety and convenience.

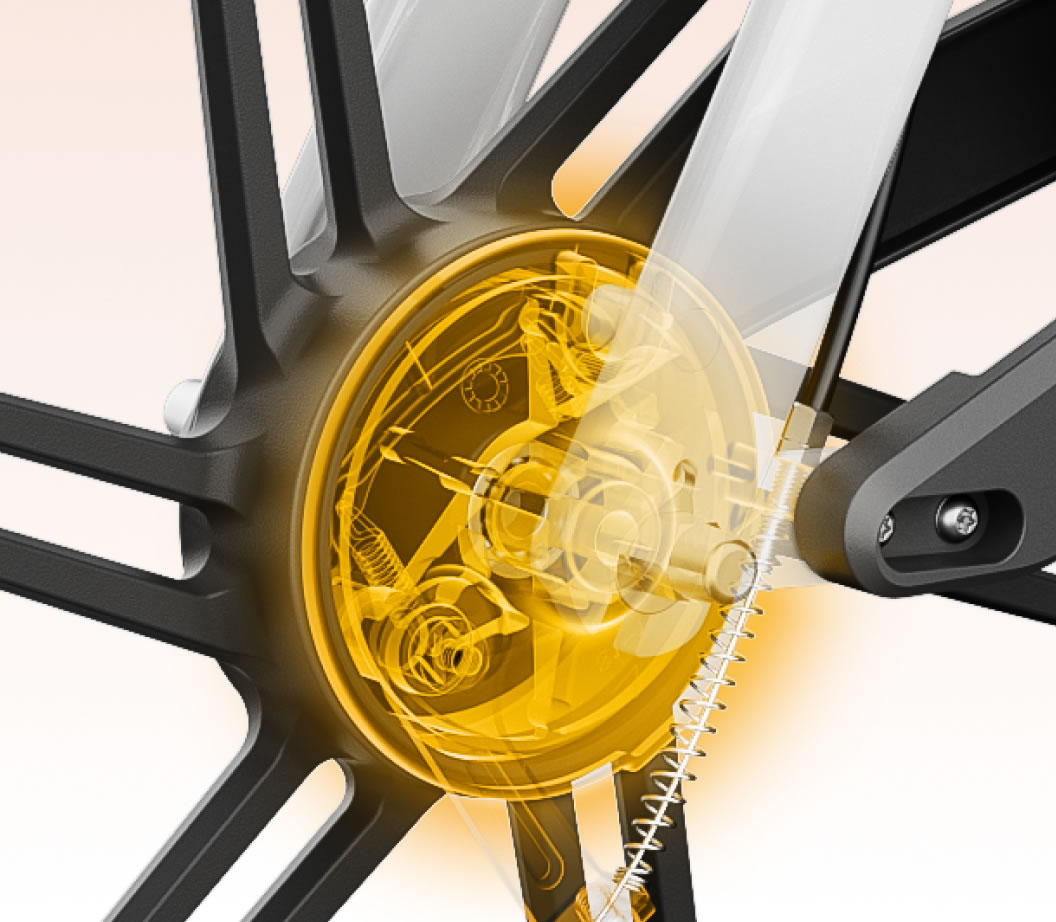

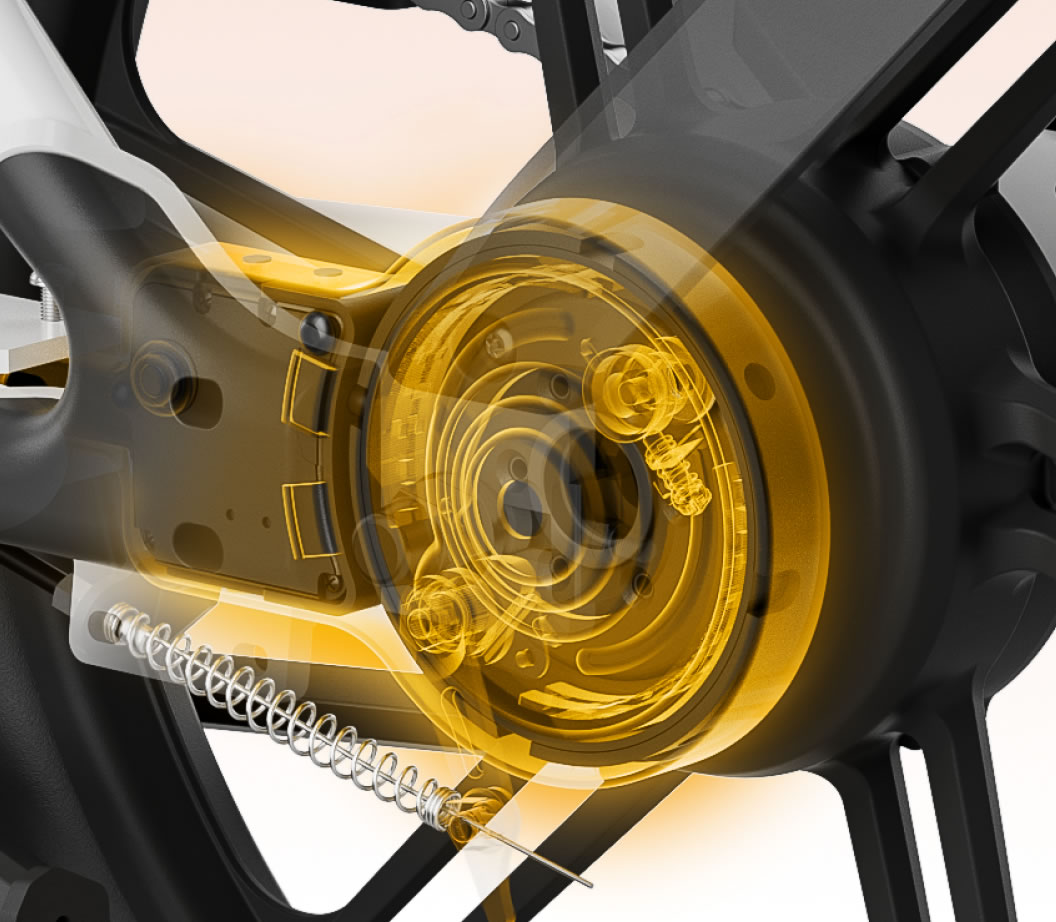

High-quality front and rear brakes deliver precise stopping power and reliable performance, ensuring safety even in emergency situations.
Wide Range of Customizable Modules
With over 10+ customizable modules, the M1 meets diverse operational needs. Operators can tailor configurations to enhance fleet versatility, optimize functionality, and create a unique brand identity.
Optional phone mount
Optional front basket
Optional helmet lock
Optional solid tires
Optional Pneumatic tires
Optional spoked wheels
Optional intergrated wheels
Optional color
Optional brand logo
Optional single kickstand
Optional dual kickstand
Optional 48V14.4Ah 691Wh 21700 battery
Optional 48V12Ah 576Wh 26700 battery
Optional Delivery Box
Optional cadence sensor
Optional torque sensor
Optional 250W power
Optional 350W power
| Max. Range | 75km |
| Max. Speed | 25km/h |
| Max. Power | 500/700W |
| Rated Power | 250/350W |
| Standby Power | <0.7W |
| Max. Incline | 23% |
| Tires | 20" solid / pneumatic tire |
| Brakes | Front & rear drum brakes |
| Battery | 48V 14.4Ah; 48V 12Ah |
| Charger | 4A |
| Waterproof | IPX5 (E-Bike Body); IPX7 (IOT/Controller/Battery/Dashboard/Motor) |
| Drive Mode | Rear-wheel drive |
| Hill Climb Assist | Yes |
| Kickstand | Single kickstand / Dual kickstand |
| Sensor | Cadence / Torque |
| NFC | Yes |

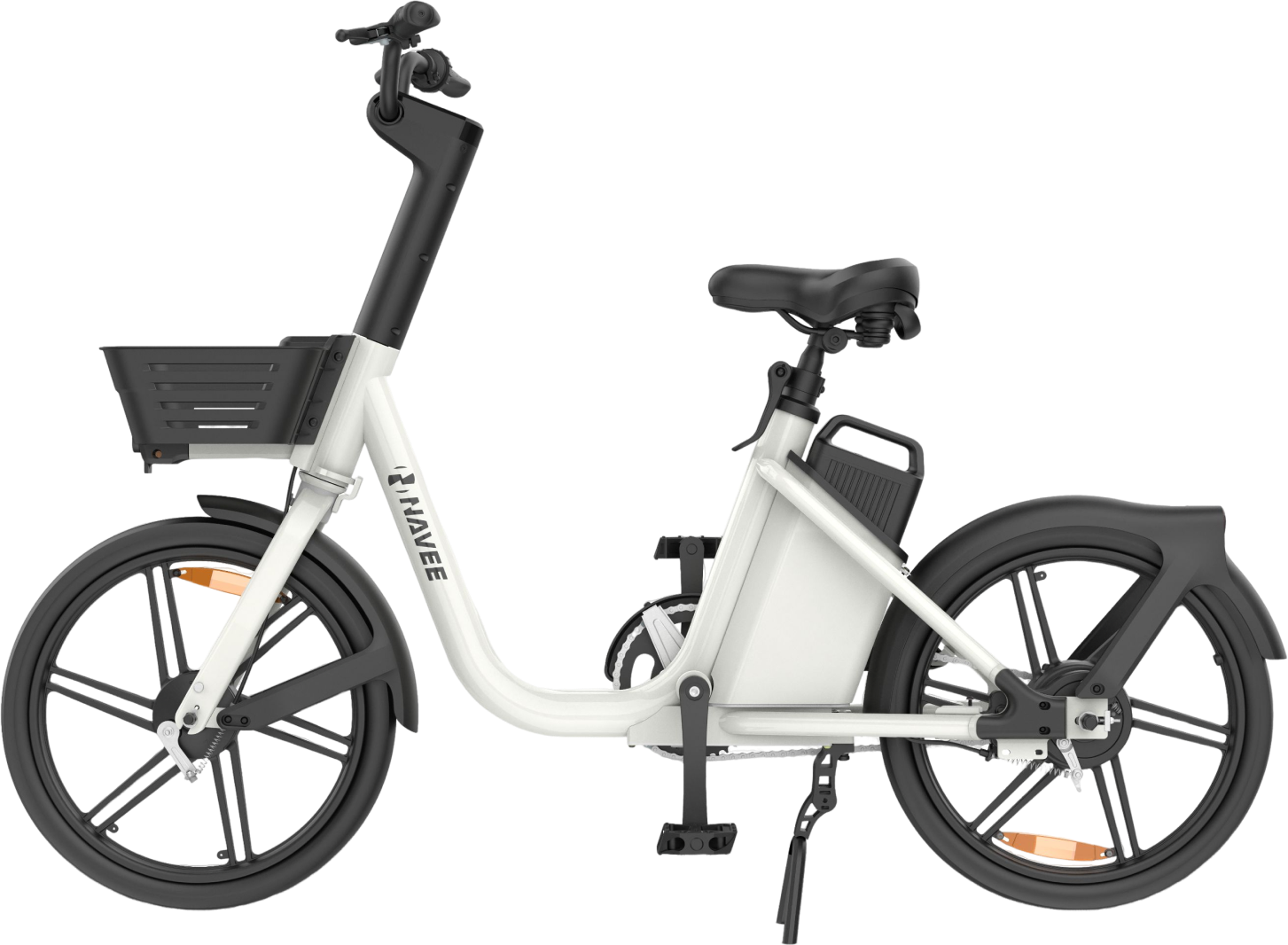

| Dimension(L*W*H) | 1610*610*1111mm |
| Weight | <30kg |
| Optional Accessories | Helmet lock, Front basket, Phone mount. |
