25km/h

Top speed

75km

Max. range

350W

Rated power

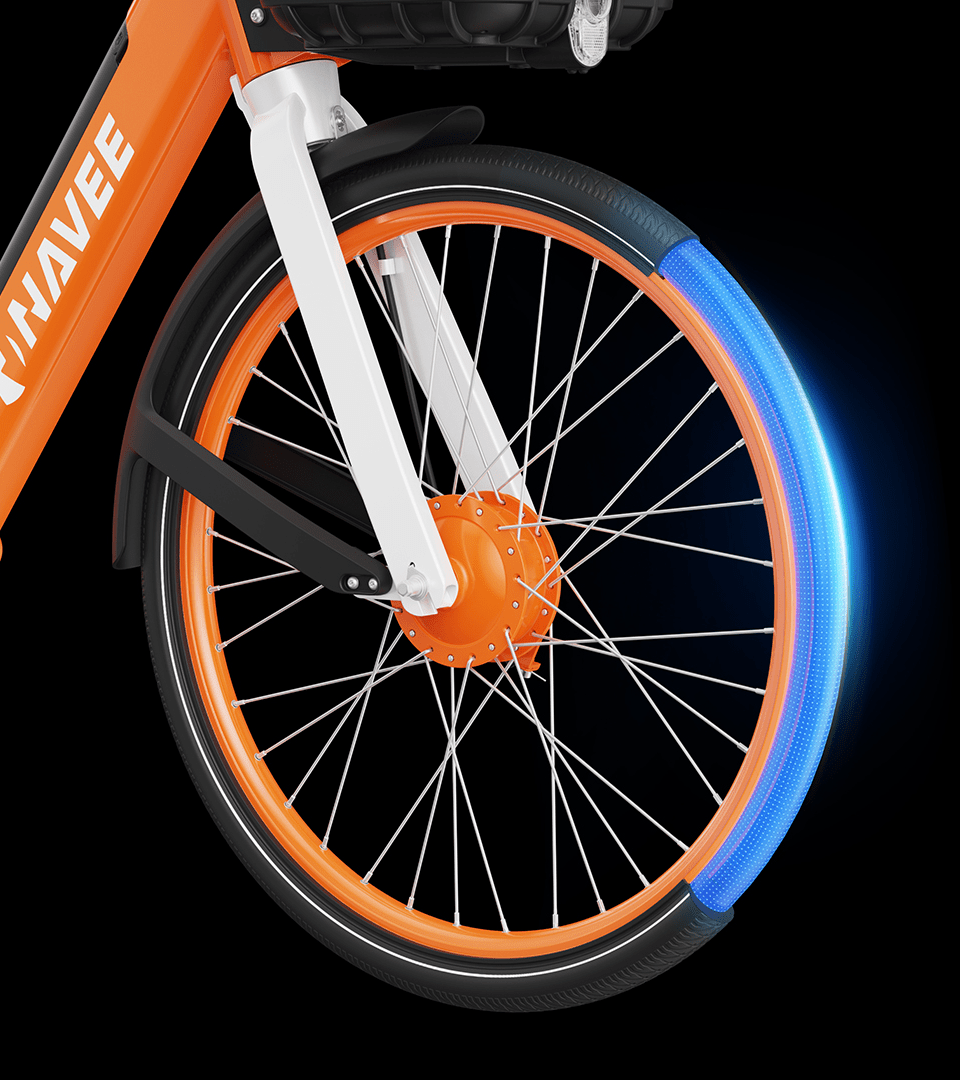

Optimal Wheel Size

Featuring a 26-inch wheel diameter, the
S1 strikes a perfect balance between
comfort and operational efficiency.

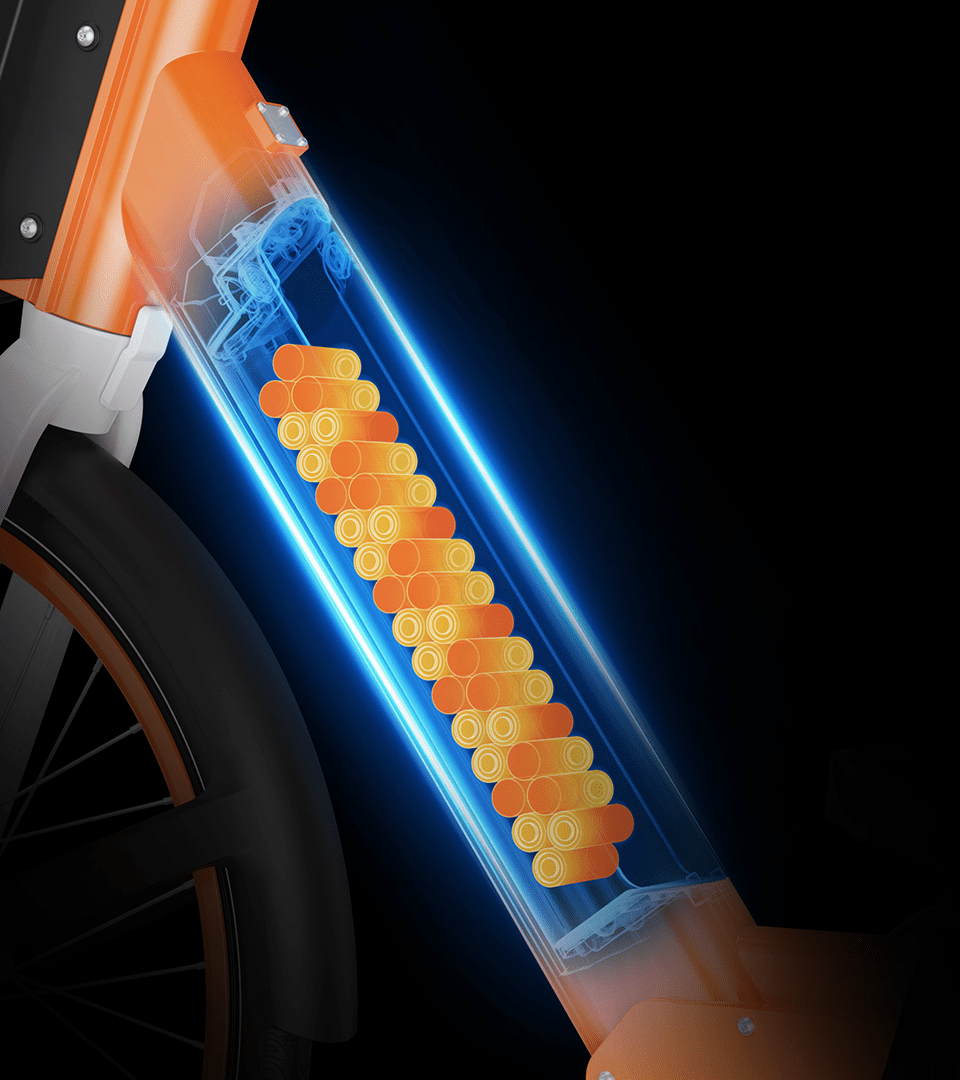

Large Capacity Battery

Equipped with a high-performance,
large-capacity battery of lithium battery.

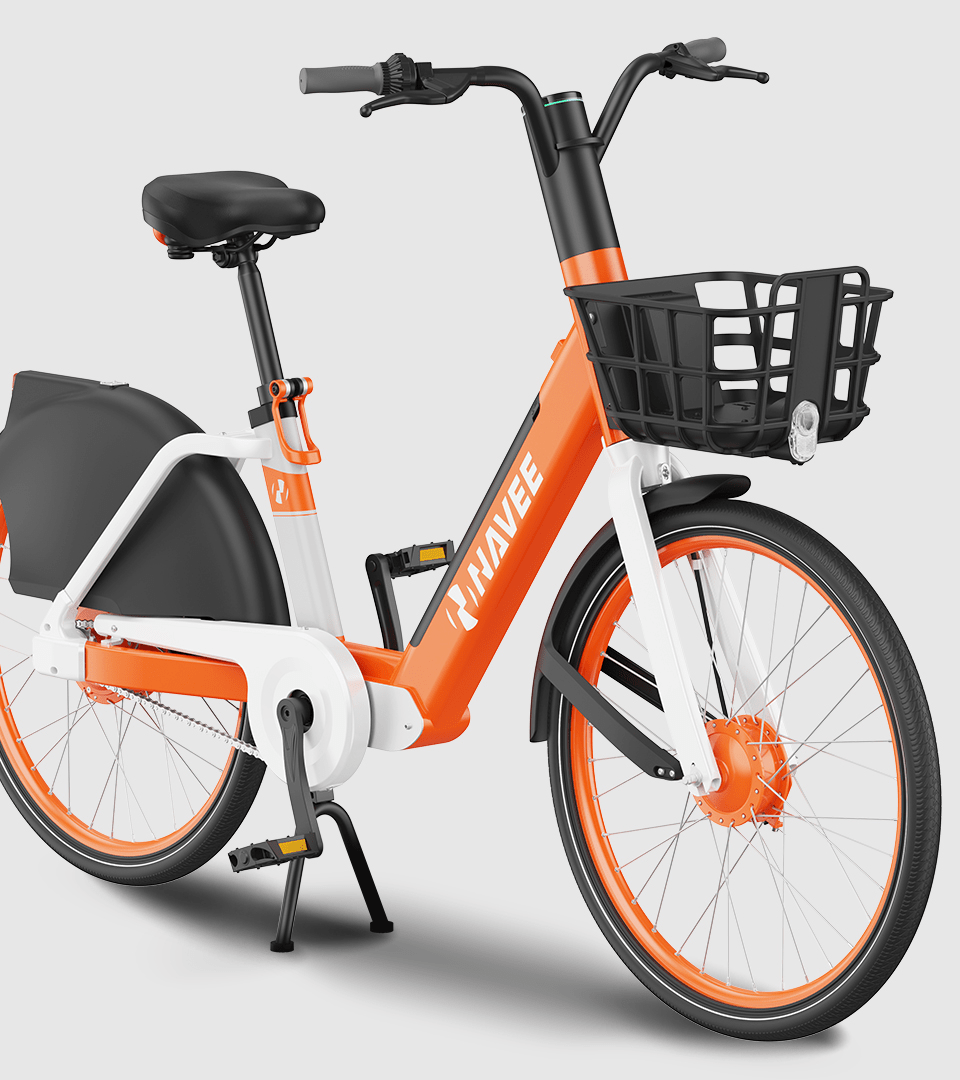

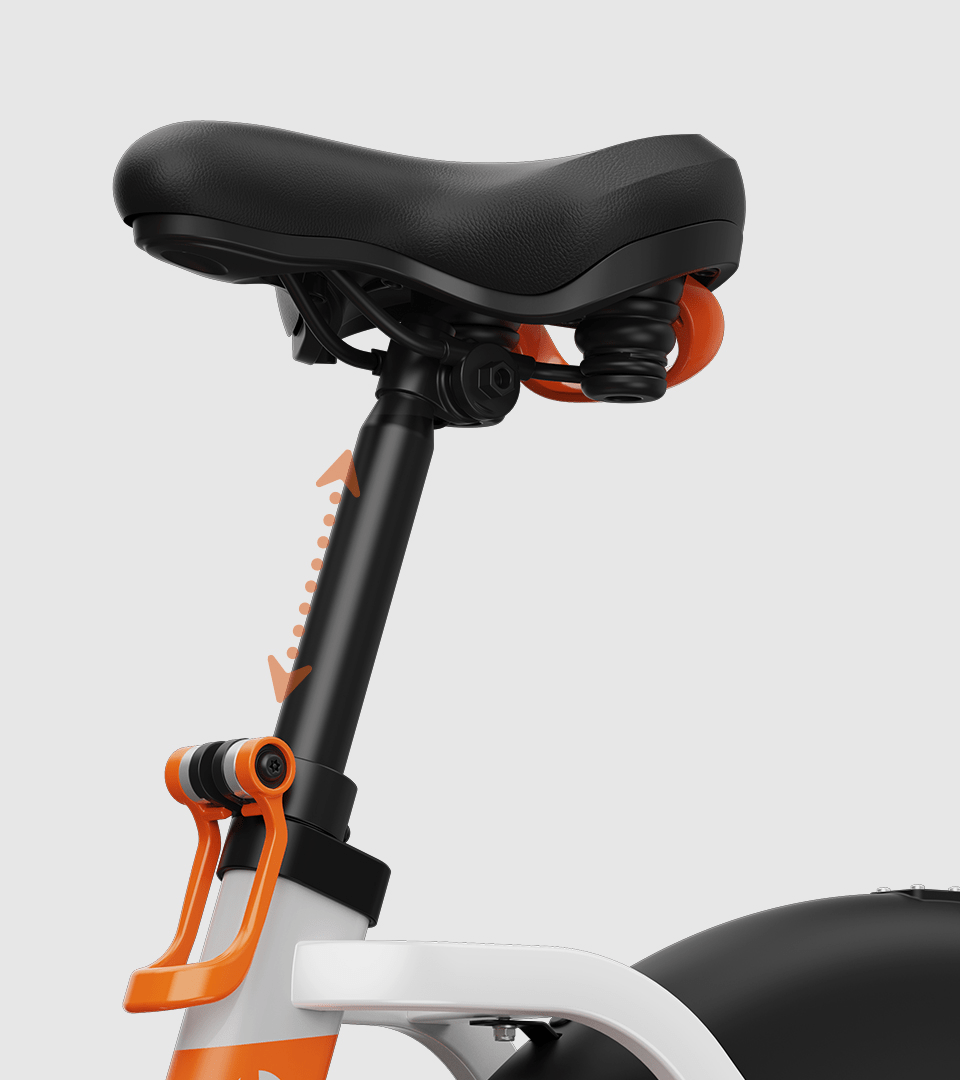

Designed to Accommodate

Various User Heights

Designed to suit users from 1.55m to 1.9m,
ensuring a comfortable ride e experience for a
wide range of individuals.

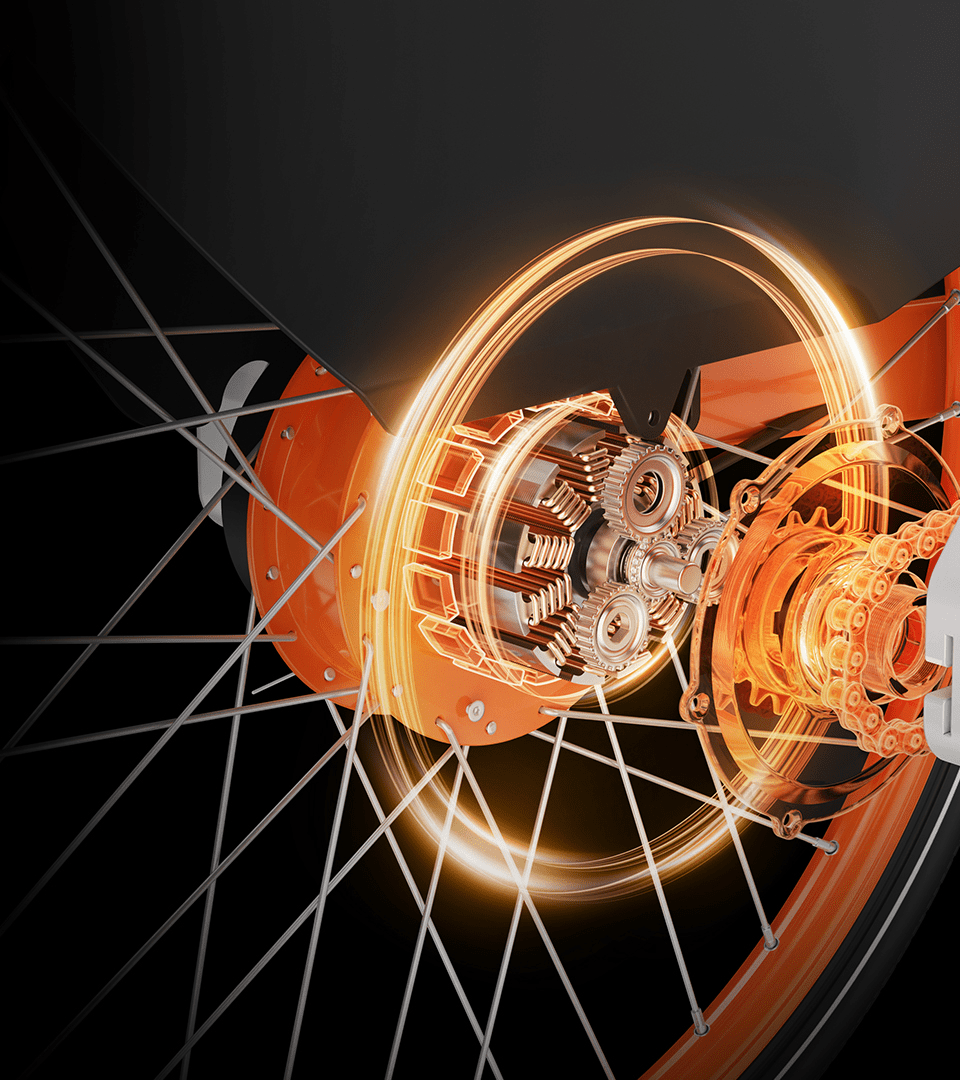

High Speed Motor

Rated/Max Power 350w/ 700W

Torque Sensor

Equipped with torque sensors to detect uphill
maneuvers in real time and automatically
increase instantaneous power.

75km Max Range

Allowing you to journey further and explore
more without worrying about battery life.

High-Precision Positioning

Dual-frequency GNSS features a state-of-the-art
positioning system for accurate navigation and
location tracking.

Seamless Connectivity

Independent battery allows to operate for up to 7
days even when the vehicle is disconnected.

Enhanced Security

With a built-in light sensor, S1 IoT system can detect
any tampering or malicious activities.

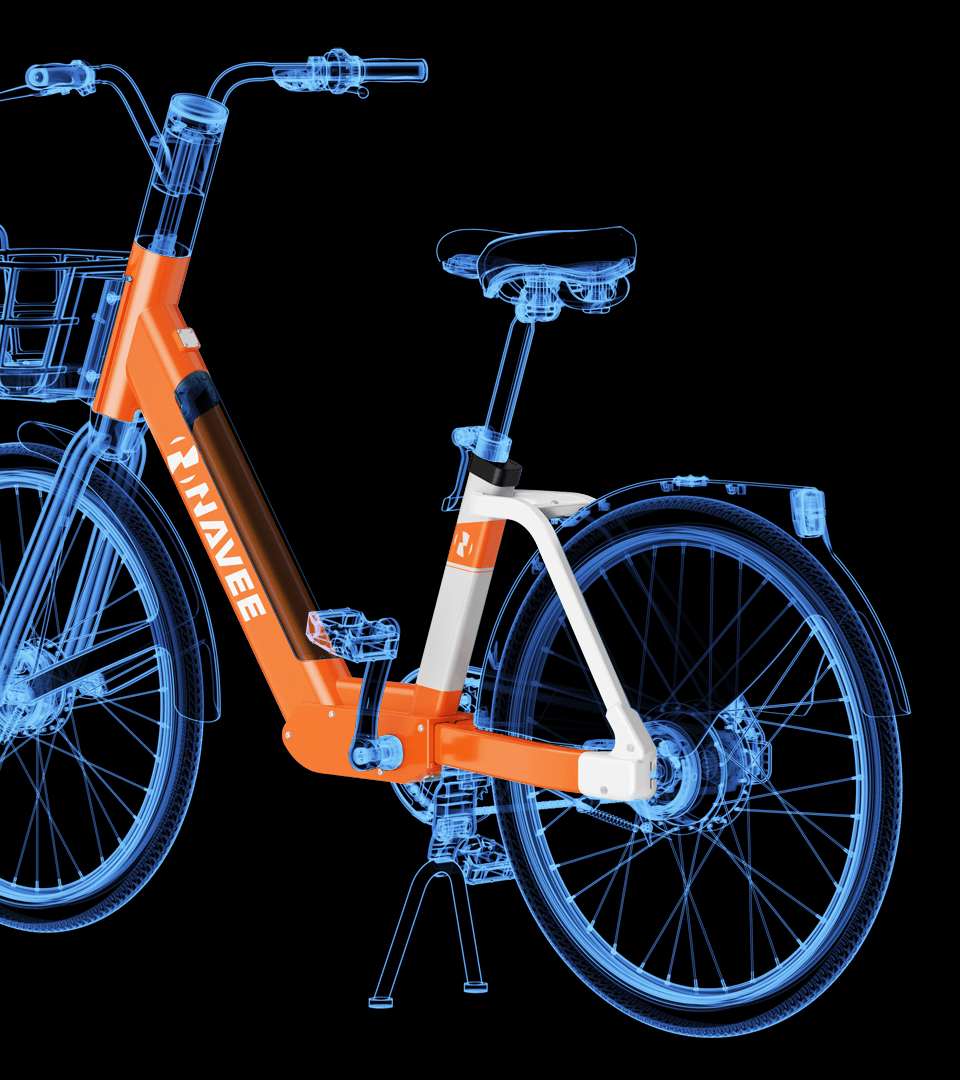

Durable, Reliable,

and Sturdy Frame

The robust construction ensures
stable driving in all conditions and
also prolongs service life.

Low Maintenance

With Integrated wheels, PU tires and
internal wiring, S1 minimizes the need
for frequent repairs and upkeep.

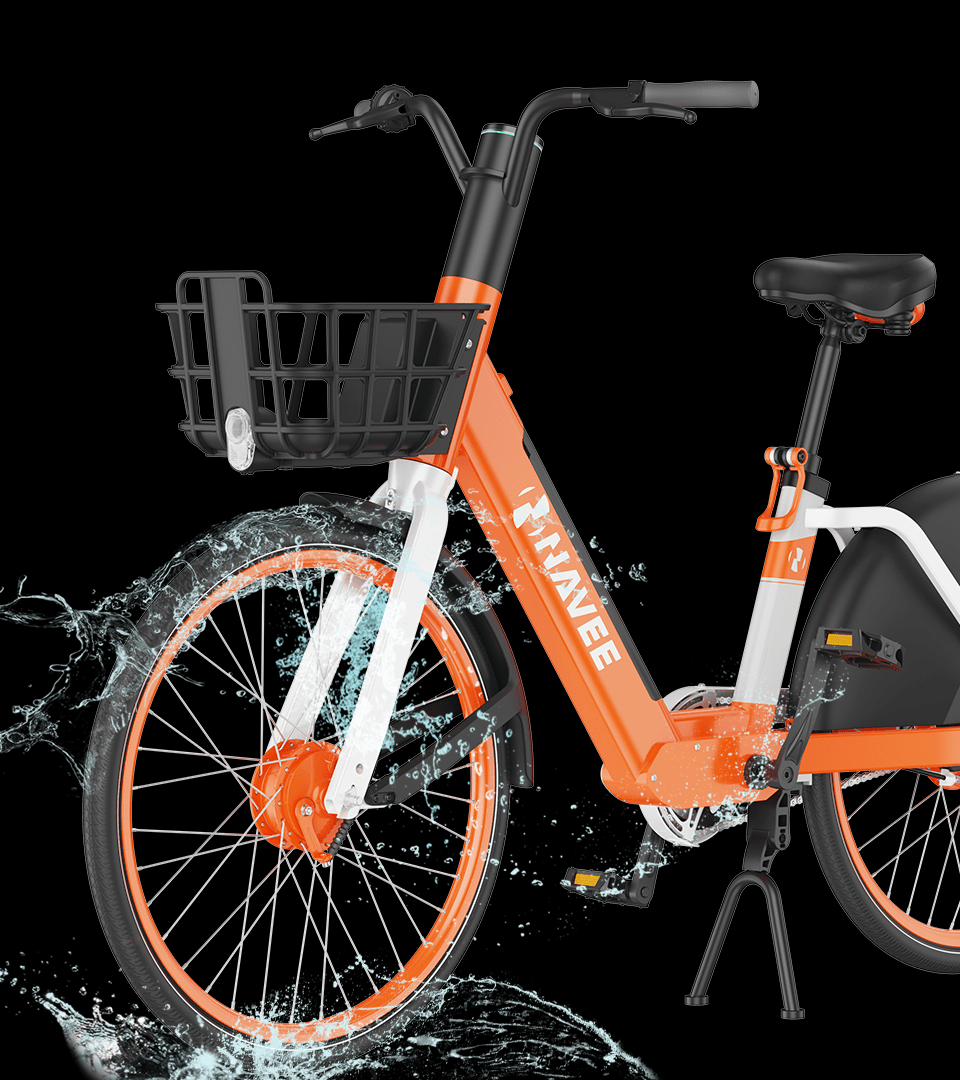

Exceptional

Waterproof Ratings

Overall waterproof rating of IPX5 and key
components including the dashboard, IoT
system, battery, and electric controller all
meet the stringent IPX7 standard.

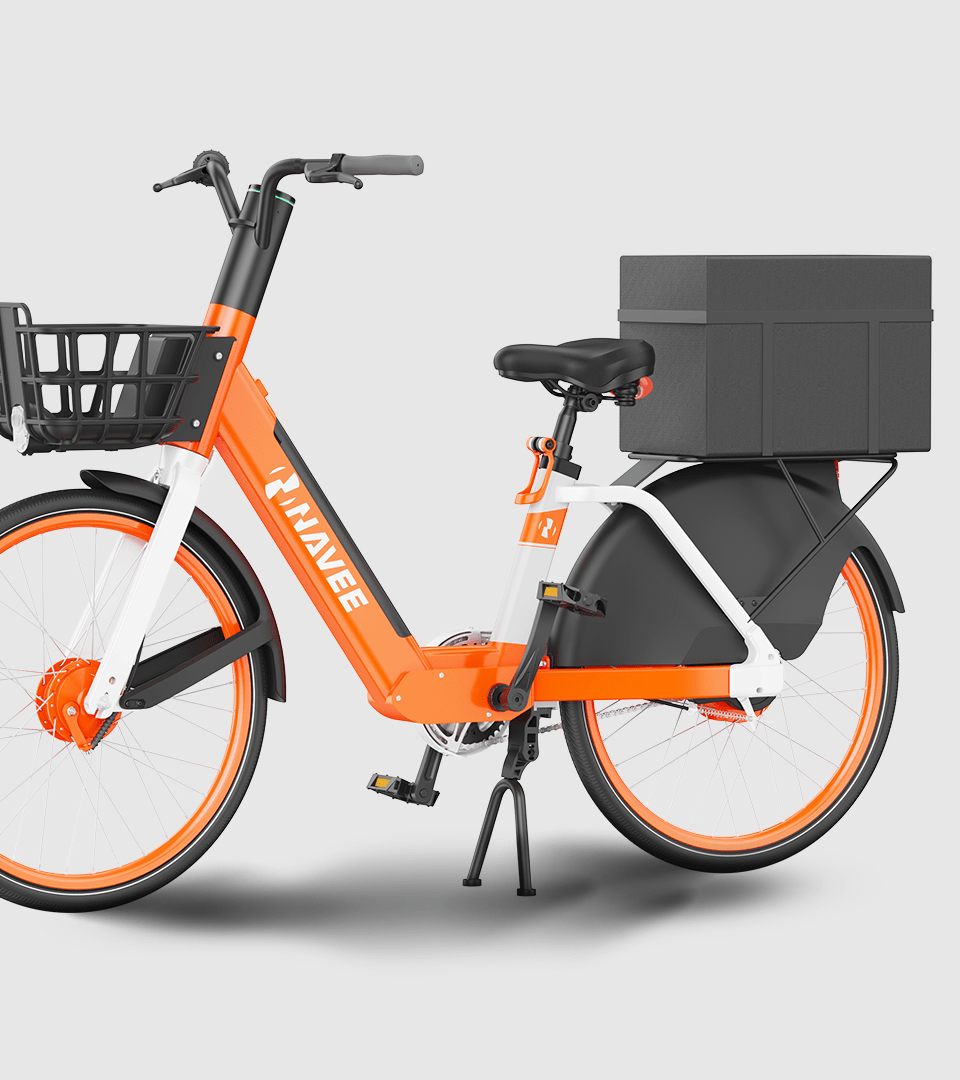

Ultimate in

Customization

Motor, tires, hubs, battery, sensor and
frame can be customized according to
the specific requirements of customers.
Delivery bracket and box can be
customized.
LOGOs, colors and appearance
stickers can be mixed and matched
according to their preferences to
create a unique shared E-bike.

NAVEE Shared E-bike S1

Dimension

1846mm*1170mm*690mm

Max. Range

75km

Max. Speed

25km/h

Tires

Front 26” / Rear 26”

Engine

Rear wheel drive

Rated/Max Power

250W/500W
350W/700W

Max Gradient

19%

Braking

Front & Rear drum brake

Waterproof

IPX5 (IPX7 for Battery, Controller, Dashboard, IOT Module)

Battery

36V/13AH, 468Wh
36V/15AH, 540Wh
36V/17AH, 612Wh

Swappable Battery

Yes

Sensor

Torque sensor/Cadence sensor
